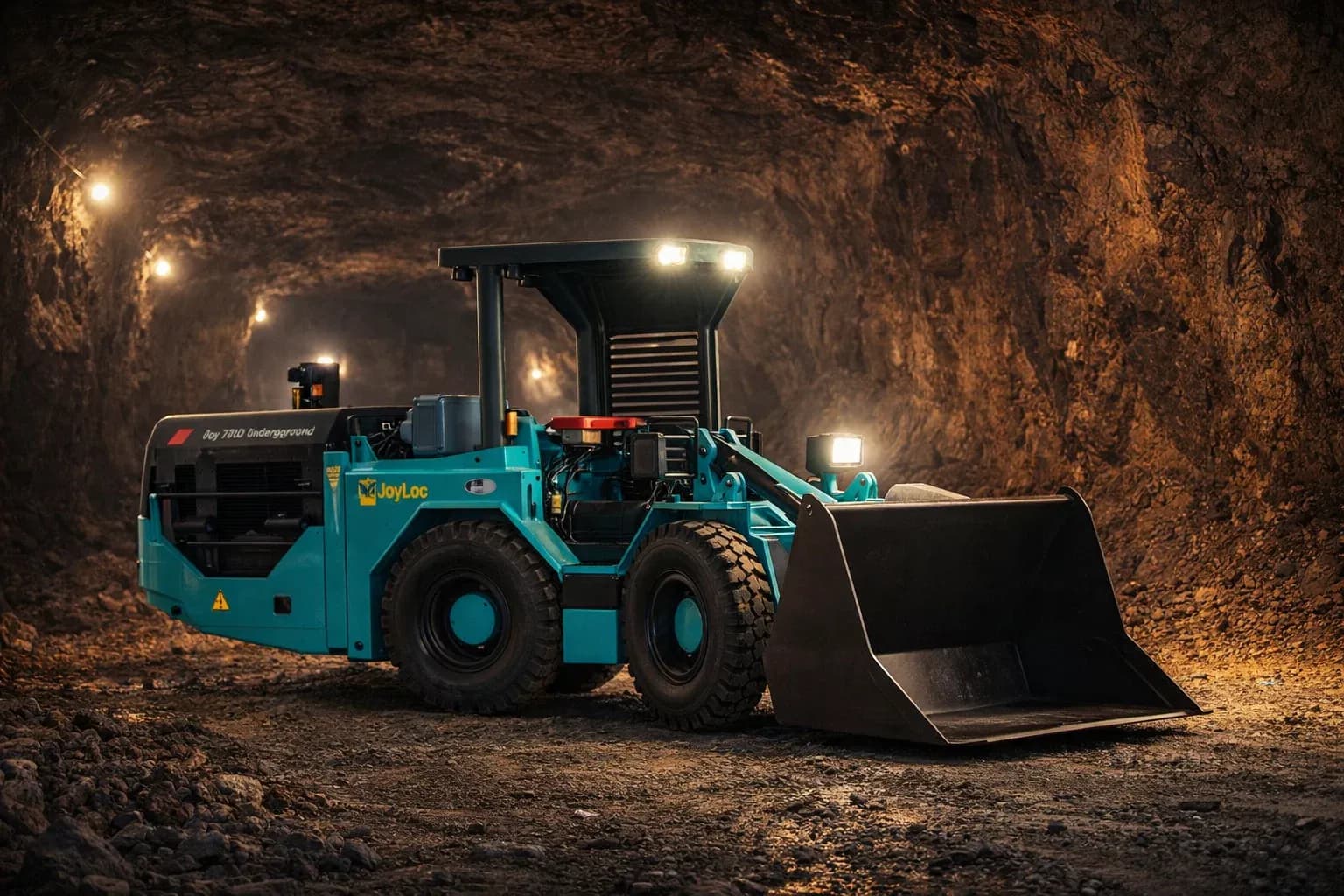

LHD 1.2 Underground Loader
Compact articulated underground loader for small-scale mining — 1,200 kg capacity, 0.60 m³ bucket, central oscillation for stability on uneven ground, 20° slope capability.
LHD 1.2 Underground Loader
Compact. Powerful. Reliable.
Overview
Designed for small-scale mining operations, the LHD 1.2 offers high maneuverability with its articulated steering system.
Its central oscillation design ensures stability on uneven ground, while the fully mechanical-hydraulic system with no electronic components provides maximum reliability and easy maintenance.
Equipped with a hydrostatic fail-safe braking system, it operates safely on slopes of up to 20°, even in demanding conditions.
Key Features
- Articulated steering for high maneuverability
- Designed for small-scale mining operations
- Central oscillation for improved stability
- No electronic components
- Hydrostatic fail-safe braking system
- Operates on slopes up to 20°
- Reinforced heavy-duty chassis
- FOPS & ROPS certified cabin
- Hydraulic joystick control
Engine Options
The machine is equipped with engine options compliant with different emission standards, ensuring suitability for various markets and regulations.
All options provide high performance, durability, and fuel efficiency under demanding working conditions.
Technical Specifications
- Loading Capacity: 1,200 kg
- Operating Weight: 4,225 kg
- Bucket Capacity: 0.60 m³
- Engine Power: 55–58 kW (stage options available)
- Travel Speed: 0–8 km/h
- Gradeability: up to 20%
- Articulation: ±36° steering / central oscillation ±7°
- Brake System: Hydrostatic (fail-safe) + Parking Brake
Optional Accessories
- Fire Suppression System
- Automatic Central Lubrication System
Get in Touch
Tell us your requirements — we'll provide the right machine and solution for your operation.
- Loading Capacity1,200 kg
- Bucket Capacity0.60 m³
- Operating Weight4,225 kg
- Engine Power55–58 kW
